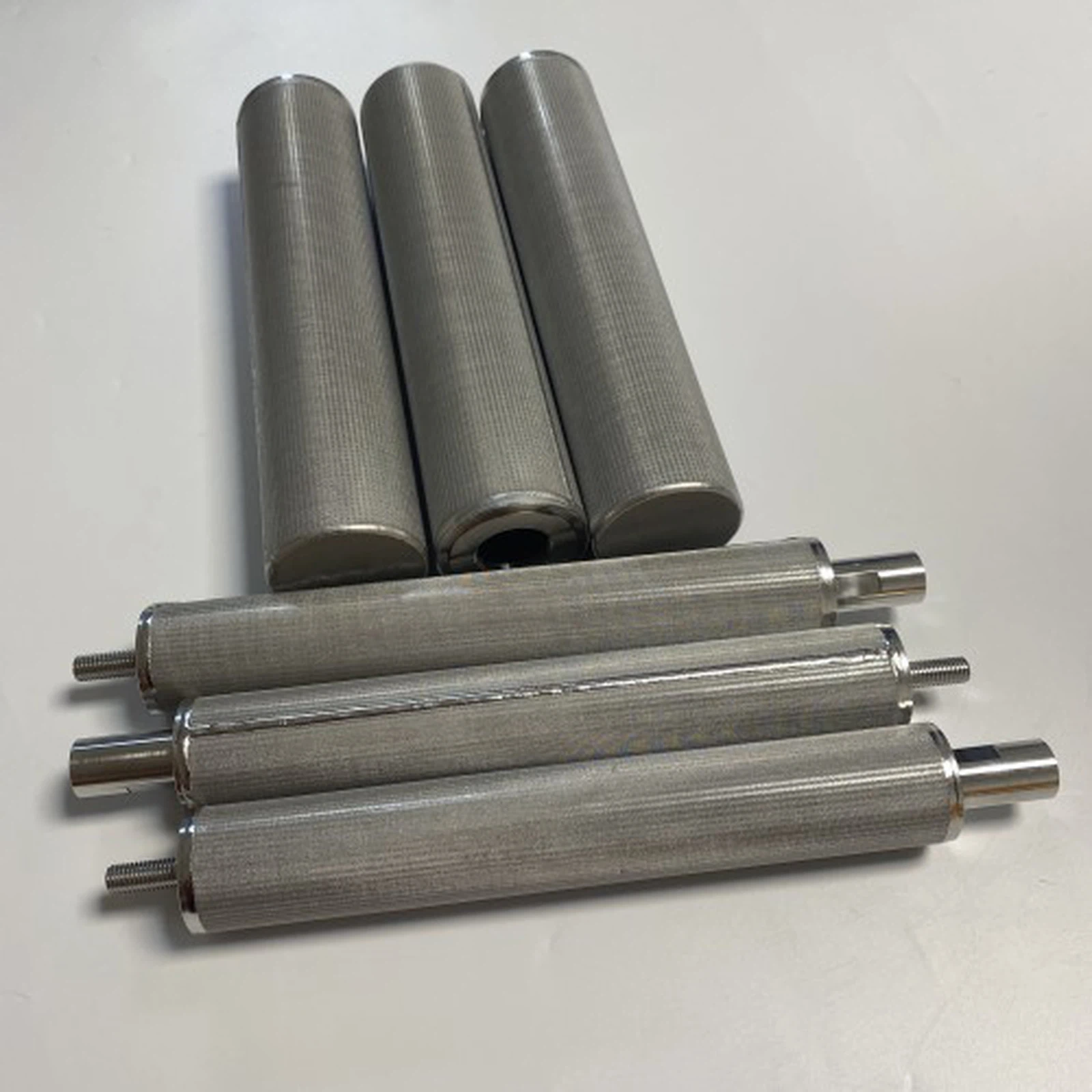

Most Muti-layer Stainless Steel Sintered Mesh Filter Element, including konvensional and pleated types, are constructed of premium stainless steel. The pleated type sintered mesh filter cartridge has a greater filtering surface than the conventional type, and both have strong mechanical strength and pressure tolerance. They resist corrosion and simple to clean. Sintered mesh filter cartridges are used in the liquid and gas filtration, chemical fiber filtration, polyester, and water treatment sectors because of their great resilience and long service life.

The protective layer, filter layer, and support layer make up the Muti-layer Stainless Steel Sintered Mesh Filter Element. The multi-layer sintered laminates contain the fine woven wire mesh (the filter layer). The laminates shield the fine mesh from mechanical harm caused by pressure from the outside environment. The mechanical strength, stability, and longevity of the three, four, and five layers make them menarik.

Produk Parameter

Bahan	tahan karat keluli 304, 304L, 316, 316L
Diameter luar	φ10-80mm
Panjang	10-1500mm
	10-50mm
Penapisan ketepatan	0.2-300um
Keliangan	35 peratus -80 peratus
Lapisan	Single, 2 to 3, 5-layer & 6-layer or customized
Perkhidmatan suhu	-200 degree to 1000 degree

Produk Ciri-ciri

Lebih baik mekanikal properties.

Stabil pore shapes for perfect kebolehtelapan.

Excellent anti-acid, anti-alkahi, resist-temperature, resist-wearing; resist-cycling.

Mudah pembersihan, boleh diguna semula dan tahan lama.

Produk Aplikasi

1.) Minyak & Gas pengeluaran

2.) Air rawatan;

3.) Makanan dan minuman;

4.) Farmasi;

5.) Chemical industry;

6.) Polimer penapisan;

7.) Tenaga & nuklear.

Produk Pemprosesan

Through a number of technological procedures, sintered wire mesh is created. To achieve adequate contact at wire mesh intersections, precision woven wire mesh is evenly calendered. Kemudian, under mechanical pressure in unique lekapan inside a hot furnace, one or more layers of this calendered web are laminated. The furnace is heated to the sintering temperature while being surrounded by a special environment of inert gas. The individual wires and each layer of wire have been bonded together after being carefully cooled, making the mesh solid. Compared to ceramics and sintered metal powder/particles, it has more favorable overall characteristics. Sintered mesh filters are very durable.

The filter element, which is simple to maintain and has a long lifespan, can be created without the need for internal assistance.
